FTdx101D

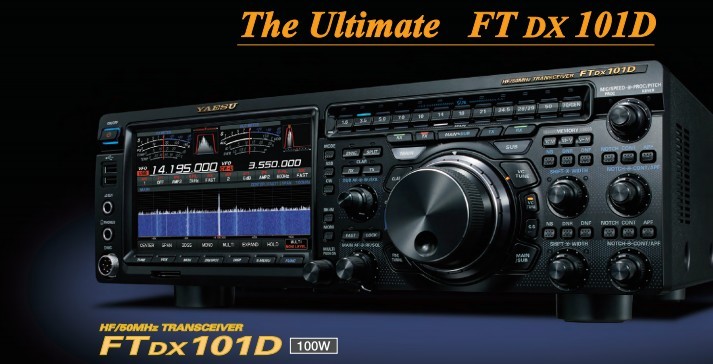

How and why I decided to buy the Yaesu FTDX101D
I first decided to purchase a SDR based transceiver, I have a few friends that have them.
So I ordered the Icom IC-7300 from GPS Central in Calgary AB.
Unfortunately the new transceiver had more than a few problem
(Note: it was just this particular radio)
What a radio...
NOTE: This radio has a "built in soundcard" (via USB cable) and a SD Card slot to save you personal settings etc.)
The first thing I decided to do was create a spreadsheet of the 216 menus choices to keep track of the settings
like what I did for my FTDX3000
Here is a link to the blank Excel sheet - FTDX101D.xlsx
I have added more columns for the different operating modes like Voice/Data etc.
MENU'S
| FUNCTIONS
| DEFAULT
| FINAL SETTINGS
|
RADIO SETTING
| |||
MODE SSB
| AGC FAST DELAY
| 300
| |
AGC MID DELAY
| 1000
| ||
AGC SLOW DELAY
| 3000
| ||
LCUT FREQ
| 100
| ||
LCUT SLOPE
| 6dB/oct
| ||
HCUT FREQ
| 3000
| ||
HCUT SLOPE
| 6dB/oct
| ||
SSB OUT SELECT
| MAIN
| ||
SSB OUT LEVEL
| 50
| ||
TX BPF SEL
| 300-2700
| ||
SSB MOD SOURCE
| MIC
| ||
REAR SELECT
| DATA
| ||
RPORT GAIN
| 50
| ||
RPTT SELECT
| DAKY
| ||
MODE AM
| AGC FAST DELAY
| 1000
| |
AGC MID DELAY
| 2000
| ||
AGC SLOW DELAY
| 4000
| ||
LCUT FREQ
| OFF
| ||
LCUT SLOPE
| 6dB/oct
| ||
HCUT FREQ
| OFF
| ||
HCUT SLOPE
| 6dB/oct
| ||
AM OUT SELECT
| MAIN
| ||
AM OUT LEVEL
| 50
| ||
TX BPF SEL
| 50-3050
| ||
AM MOD SOURCE
| MIC
| ||
MIC GAIN
| MCVR
| ||
REAR SELECT
| DATA
| ||
RPORT GAIN
| 50
| ||
RPTT SELECT
| DAKY
| ||
MODE FM
| AGC FAST DELAY
| 160
| |
AGC MID DELAY
| 500
| ||
AGC SLOW DELAY
| 1500
| ||
LCUT FREQ
| 300
| ||
LCUT SLOPE
| 18dB/oct
| ||
HCUT FREQ
| 3000
| ||
HCUT SLOPE
| 18dB/oct
| ||
FM OUT SELECT
| MAIN
| ||
FM OUT LEVEL
| 50
| ||
FM MOD SOURCE
| MIC
| ||
MIC GAIN
| MCVR
| ||
REAR SELECT
| DATA
| ||
RPORT GAIN
| 50
| ||
RPTT SELECT
| DAKY
| ||
RPT SHIFT(28MHz)
| 100
| ||
RPT SHIFT(50MHz)
| 1000
| ||
MODE PSK/DATA
| AGC FAST DELAY
| 160
| |
AGC MID DELAY
| 500
| ||
AGC SLOW DELAY
| 1500
| ||
PSK TONE
| 1000
| ||
DATA SHIFT (SSB)
| 1500
| ||
LCUT FREQ
| 300
| ||
LCUT SLOPE
| 18dB/oct
| ||
HCUT FREQ
| 300
| ||
HCUT SLOPE
| 18dB/oct
| ||
DATA OUT SELECT
| MAIN
| ||
DATA OUT LEVEL
| 50
| ||
TX BPF SEL
| 300-2700
| ||
DATA MOD SOURCE
| REAR
| ||
REAR SELECT
| DATA
| ||
RPORT GAIN
| 50
| ||
RPTT SELECT
| DAKY
| ||
MODE RTTY
| AGC FAST DELAY
| 160
| |
AGC MID DELAY
| 500
| ||
AGC SLOW DELAY
| 1500
| ||
POLARITY RX
| NOR
| ||
POLARITY TX
| NOR
| ||
LCUT FREQ
| 300
| ||
LCUT SLOPE
| 18dB/oct
| ||
HCUT FREQ
| 3000Hz
| ||
HCUT SLOPE
| 18dB/oct
| ||
RTTY OUT SELECT
| MAIN
| ||
RTTY OUT LEVEL
| 50
| ||
RPTT SELECT
| DAKY
| ||
MARK FREQUENCY
| 2125 (Hz)
| ||
SHIFT FREQUENCY
| 170 (Hz)
| ||
ENCDEC PSK
| PSK MODE
| BPSK
| |
DECODE AFC RANGE
| 15 (Hz)
| ||
QPSK POLARITY RX
| NOR
| ||
QPSK POLARITY TX
| NOR
| ||
PSK TX LEVEL
| 70
| ||
ENCDEC RTTY
| RX USOS
| ON
| |
TX USOS
| ON
| ||
RX NEW LINE CODE
| CR+LF
| ||
TX AUTO CR+LF
| ON
| ||
TX DIDDLE
| BLANK
| ||
BAUDOT CODE
| US
| ||
CW SETTING
| |||
MODE CW
| AGC FAST DELAY
| 160
| |
AGC MID DELAY
| 500
| ||
AGC SLOW DELAY
| 1500
| ||
LCUT FREQ
| 250Hz
| ||
LCUT SLOPE
| 18dB/oct
| ||
HCUT FREQ
| 1200Hz
| ||
HCUT SLOPE
| 18dB/oct
| ||
CW OUT SELECT
| MAIN
| ||
CW OUT LEVEL
| 50
| ||
CW AUTO MODE
| OFF
| ||
CW BK-IN TYPE
| SEMI
| ||
CW BK-IN DELAY
| 200
| ||
CW WAVE SHAPE
| 4
| ||
CW FREQ DISPLAY
| PITCH OFFSET
| ||
PC KEYING
| OFF
| ||
QSK DELAY TIME
| 15
| ||
CW INDICATOR
| ON
| ||
KEYER
| F KEYER TYPE
| ELEKEY-B
| |
F KEYER DOT/DASH
| NOR
| ||
R KEYER TYPE
| ELEKEY-B
| ||
R KEYER DOT/DASH
| NOR
| ||
CW WEIGHT
| 3
| ||
NUMBER STYLE
| 1290
| ||
CONTEST NUMBER
| 1
| ||
CW MEMORY 1
| TEXT
| ||
CW MEMORY 2
| TEXT
| ||
CW MEMORY 3
| TEXT
| ||
CW MEMORY 4
| TEXT
| ||
CW MEMORY 5
| TEXT
| ||
REPEAT INTERVAL
| 5
| ||
DECODE CW
| CW DECODE BW
| 100
| |
OPERATION SETTING
| |||
GENERAL
| DECODE RX SELECT
| MAIN
| |
HEADPHONE MIX
| SEPARATE
| ||
ANT3 SELECT
| TRX
| ||
NB WIDTH
| 3
| ||
NB REJECTION
| 30
| ||
BEEP LEVEL
| 10
| ||
RF/SQL VR
| RF
| ||
TUNER SELECT
| INT
| ||
232C RATE
| 4800
| ||
232C TIME OUT TIMER
| 10
| ||
CAT RATE
| 4800
| ||
CAT TIME OUT TIMER
| 10
| ||
CAT RTS
| ON
| ||
QMB CH
| 5ch
| ||
MEM GROUP
| OFF
| ||
QUICK SPLIT INPUT
| OFF
| ||
QUICK SPLIT FREQ
| 5
| ||
TX TIME OUT TIMER
| OFF
| ||
MIC SCAN
| ON
| ||
MIC SCAN RESUME
| TIME
| ||
REF FREQ FINE ADJ
| 0
| ||
CS DIAL
| MEM CH
| ||
KEYBOARD LANGUAGE
| ENGLISH(US)
| ||
RX DSP
| APF WIDTH
| MEDIUM
| |
CONTOUR LEVEL
| 15
| ||
CONTOUR WIDTH
| 10
| ||
DNR LEVEL
| 1
| ||
IF NOTCH WIDTH
| WIDE
| ||
TX AUDIO
| PROC LEVEL
| AMC
| |
AMC RELEASE TIME
| MID
| ||
PRMTRC EQ1 FREQ
| OFF
| ||
PRMTRC EQ1 LEVEL
| 5
| ||
PRMTRC EQ1 BWTH
| 10
| ||
PRMTRC EQ2 FREQ
| OFF
| ||
PRMTRC EQ2 LEVEL
| 5
| ||
PRMTRC EQ2 BWTH
| 10
| ||
PRMTRC EQ3 FREQ
| OFF
| ||
PRMTRC EQ3 LEVEL
| 5
| ||
PRMTRC EQ3 BWTH
| 10
| ||
P PRMTRC EQ1 FREQ
| OFF
| ||
P PRMTRC EQ1 LEVEL
| 0
| ||
P PRMTRC EQ1 BWTH
| 2
| ||
P PRMTRC EQ2 FREQ
| OFF
| ||
P PRMTRC EQ2 LEVEL
| 0
| ||
P PRMTRC EQ2 BWTH
| 1
| ||
P PRMTRC EQ3 FREQ
| OFF
| ||
P PRMTRC EQ3 LEVEL
| 0
| ||
P PRMTRC EQ3 BWTH
| 1
| ||
TX GENERAL
| HF MAX POWER
| 5 - 100W)
| |
50M MAX POWER
| 5 - 100W)
| ||
70M MAX POWER
| 5 - 50 (W)
| ||
AM MAX POWER
| 5 - 25W)
| ||
VOX SELECT
| MIC
| ||
DATA VOX GAIN
| 50
| ||
EMERGENCY FREQ TX
| OFF
| ||
TUNING
| SSB/CW DIAL STEP
| 10
| |
RTTY/PSK DIAL STEP
| 10
| ||
CH STEP
| 2.5
| ||
AM CH STEP
| 5
| ||
FM CH STEP
| 5
| ||
MAIN STEPS PER REV.
| 500
| ||
MPVD STEPS PER REV.
| 500
| ||
DISPLAY SETTING
| |||
DISPLAY
| MY CALL
| FTDX101
| |
MY CALL TIME
| 1
| ||
SCREEN SAVER
| 60
| ||
TFT CONTRAST
| 10
| ||
TFT DIMMER
| 15
| ||
LED DIMMER
| 10
| ||
MOUSE POINTER SPEED
| 10
| ||
FREQ STYLE
| BOLD
| ||
SCOPE
| RBW
| HIGH
| |
SCOPE CTR
| CAR POINT
| ||
2D DISP SENSITIVITY
| HI
| ||
3DSS DISP SENSITIVITY
| HI
| ||
EXT MONITOR
| EXT DISPLAY
| OFF
| |
PIXEL
| 800x480
| ||
EXTENSION SETTING
| |||
DATE&TIME
| DAY
| ||
MONTH
| |||
YEAR
| |||
HOUR
| |||
MINUTE
| |||
SD CARD
| MEM LIST LOAD
| ||
MEM LIST SAVE
| |||
MENU LOAD
| |||
MENU SAVE
| |||
INFORMATIONS
| |||
FIRMWARE UPDATE
| |||
FORMAT
| |||
SOFT VERSION
| MAIN
| ||
DISPLAY
| |||
MAIN DSP
| |||
SUB DSP
| |||
MAIN SDR
| |||
SUB SDR
| |||
AF SDSP
| |||
CALIBRATION
| CALIBRATION
| ||
RESET
| MEMORY CLEAR
| ||
MENU CLEAR
| |||
ALL RESET
|
This site is for reference only use at your discretion
